స్టెయిన్‌లెస్ స్టీల్ ఇనుము అల్యూమినియం రాగి ఇత్తడి కోసం Wobble హెడ్ హ్యాండ్‌హెల్డ్ ఫైబర్ లేజర్ వెల్డింగ్ మెషిన్

హోమ్ / ఉత్పత్తులు / ఫైబర్ లేజర్ వెల్డింగ్ మెషిన్ / స్టెయిన్‌లెస్ స్టీల్ ఇనుము అల్యూమినియం రాగి ఇత్తడి కోసం Wobble హెడ్ హ్యాండ్‌హెల్డ్ ఫైబర్ లేజర్ వెల్డింగ్ మెషిన్

ఉత్పత్తి వివరణ

వస్తువు యొక్క వివరాలు

వెల్డింగ్ తల

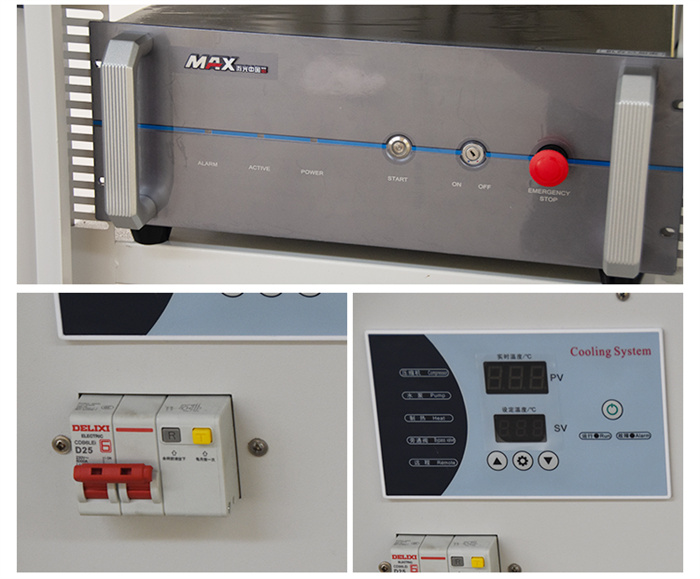

Control panel

లేజర్ మూలం

చిల్లర్

ఉత్పత్తి అప్లికేషన్

Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries.

TECHNICIAL PARAMETERS
మోడల్
HY-WF01
Maximum Laser Power
500W/1000W/1500W/2000W
The Laser Wavelength
1.06um
Operation Model
Continuity
Laser Welding Depth
1mm~4.0mm
Wobble Welding Head
Spot Size (1.0-3.0mm option)
Power Regulation
10-100%
Wire Feeding System
ఎంపిక
Positioning System (GPS)
Red light indication
Power Demand
220V/50HZ/60HZ, 380V/50HZ/60HZ
Cooling Mode
నీటి శీతలీకరణ
The Whole Machine Consumes Power
<3KW
The Whole Machine Size
 WLH (1200*700*1200mm)

Main Advantages

The Laser welding is to irradiate a high energy density laser beam on two parts of the material, melt the material and then cooling and solidification into one. Compared with traditional welding technology, the Auto wire feeding hand held laser welding has the following advantages:
1. The weld seam is smoothe and beautiful, it doesnot need to be polished or the workboard of the polish is very small.

2. Through control the laser energy, the welding will not defrom or very few deformation.

3. Handheld laser welding machine is easy to handle and needn't to require the professional welders.

4. The wobble welding machine can handle the hard welding material easily, such as aluminum, brass.

5. Long life span up to 100,000 hours and low comsumption.

6. the Auto wire feeding handheld welding machine can weld parts with wider gap.

7. With a 8-15m fiber line, It can weld long-distance and large- area parts.

8. Various welding processes, such as spot welding, seam welding and overlap welding.

9. The welding efficiency is around 5 times of TIG welding.

10. It is welding used in electronics, sheet metal, air condiction industry etc.

నమూనా

Packing
