వర్క్‌షాప్ షీట్ మెటల్ సి రకం పవర్ ప్రెస్ మెకానికల్ పంచింగ్ మెషిన్

ఉత్పత్తి వివరణ

JH21series open back punching machine with dry clutch

• Welded body with steel plate and high intensity.
• Main motor is made by Siemens.
• Adopts combined pneumatic friction clutch and brake.
• Cluster gear adopts the flooding oil lubrication.
• Six-face rectangle lengthen guide; JH21-315B/400B adopts eight-face lengthen guideway.
• Equipped with hydraulic overload protecting device.
• JH21-25/25B/45 adopts manual shut height adjustment,among these types JH21-25/45 adopts scale display and JH21-25B with digital display.JH21-63 and above type adopts electric shut height adjustment with digital display.
• JH21-45 can equip with die set height adjustment motor, the value will be displayed by digital.
• JH21-25B, JH21-45 and above type equipped with balance cylinder.
• Duplex valves imported.
• Electric compelling grease lubrication system.
• Balancing cylinder adopts manual lubrication system.
• One set of blowing device.
• Controlled by PLC with international brand.
• Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
• Equipped with optional air cushion device, automatic feed shaft and photoelectric protector,which can used to work with various automatic equipments.

స్పెసిఫికేషన్

SN	అంశం	యూనిట్	స్పెసిఫికేషన్
1	నామమాత్రపు శక్తి	kN	1600
2	Stroke under nominal force	మి.మీ	6
3	Slide block stroke	మి.మీ	160
4	Number of Fixed stroke	నిమి-1	40
5	Number of Variable stroke	నిమి-1	35-50
6	Max die set height	మి.మీ	350
7	డై సెట్ ఎత్తు సర్దుబాటు	kW	110
8	Distance from slide block centre to the frame	మి.మీ	380
9	Worktable dimensions (F/B*L/R)	మి.మీ	740*1300
10	Dimensions of worktable hole	మి.మీ	Φ 300*50* Φ260
11	Thickness of bolster	మి.మీ	150
12	Hole dimensions in bed (Diameter /F/B*L/R)	మి.మీ	480*600
13	Dimensions of slide block bottom surface (F/B*L/R)	మి.మీ	580*770
14	Size of the handle hole (Diameter*Depth)	మి.మీ	Φ65*85
15	Distance between columns of body	మి.మీ	850
16	ప్రధాన మోటార్ శక్తి	kW	15
17	Dimensions(F/B*L/R*H)	మి.మీ	2230*1630*3210
18	నికర బరువు	కిలొగ్రామ్	14500

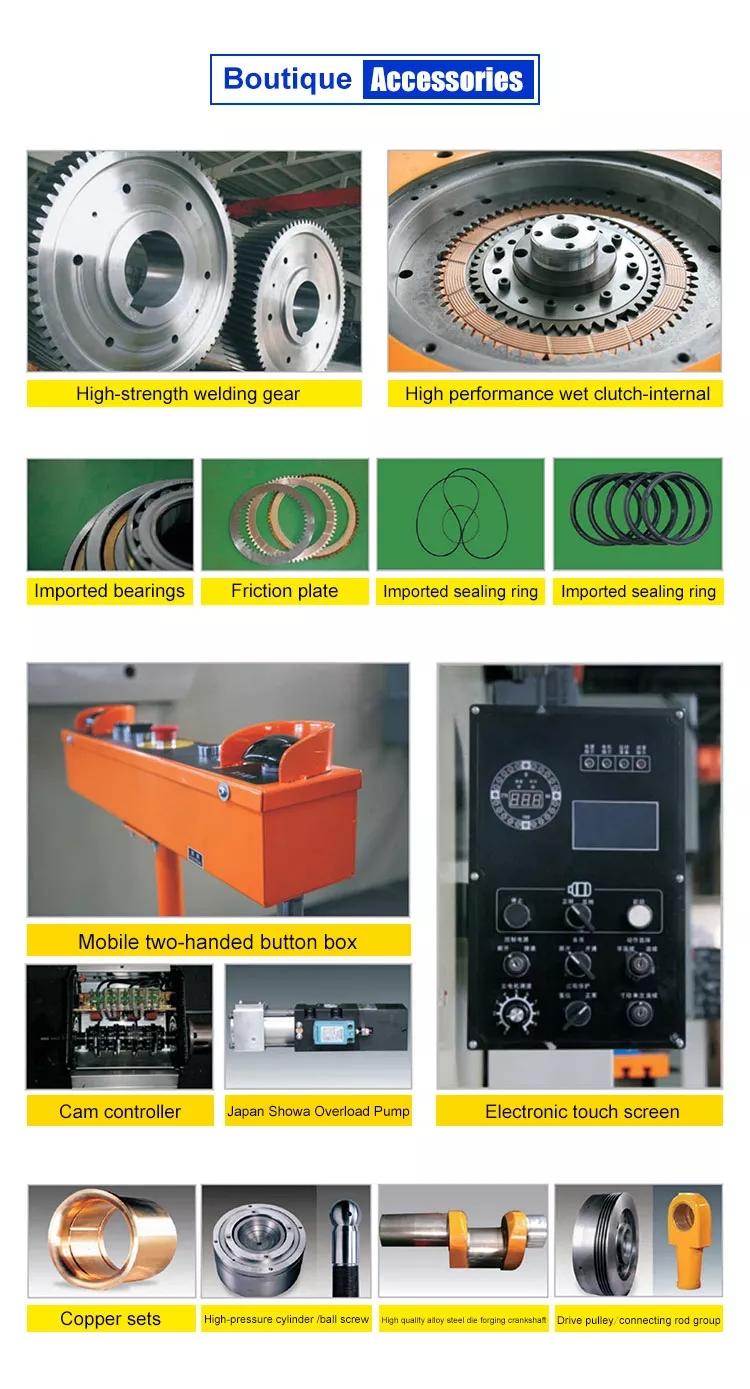

Details Picture
